Hello Android developers, in this article we’ll take a look at publishing Android library to the GitHub Package Registry and automating it with GitHub Actions CI. You might have developed a cool Android library and wanted to publish it somewhere. In some situations, the GitHub Package Registry is really a good choice. Let’s discuss more on it.

What is GitHub Package Registry? 🤷‍♀️

• With GPR, you can safely publish and consume packages.
• It supports various types of packages for maven, NPM, Docker, NuGet, RubyGems, etc.

What’s different in GitHub Package Registry? 🤷‍♀️

• In the Android library context, comparing it with Bintray / JCenter / MavenCentral, GPR provides security for consuming package.
• Anybody directly can’t use the package without an access token.
• If you want to develop a private Android library only for some authenticated developers. For e.g. You have to develop an Android library only for a specific organisation. The only organisation will be able to use this library. Comparing this with Bintray, then it’s PAID 💰 for private packages. That’s how GPR is the right choice in some cases.

That’s a short introduction about GPR 😃.

---

Getting started 🚀

You can refer to this repository which includes the code which we’re going to use in this example.

In this example, we’ll set up a GitHub Actions workflow which will be triggered whenever a git tag is pushed on GitHub and it’ll publish Android library to GPR and will also create GitHub release automatically. So you just need to code, push and chill 😍. So let’s start.

Configure Library module

Considering you already have developed your library we’ll directly start with configuring setup for publishing it to GPR.

• Open build.gradle file of your library module.
• Apply maven-publish plugin at the top of the file.

apply plugin: 'com.android.library'
apply plugin: 'kotlin-android'
apply plugin: 'kotlin-android-extensions'
apply plugin: 'maven-publish'

• Declare Android library details such as group, artifact, version, name, etc as below 👇

ext {
    mGroupId = "com.example"
    mArtifactId = "simple-library"
    mVersionCode = 1
    mVersionName = "0.2.0"

    mLibraryName = "SimpleLibrary"
    mLibraryDescription = "Simple Library for simple things!"
}

• Create a task for generating Android source (.jar)

task androidSourcesJar(type: Jar) {
    archiveClassifier.set('sources')
    from android.sourceSets.main.java.srcDirs
}

• Configure maven publication options as below 👇. This will be responsible for a group and an artifact ID of your Android library.

afterEvaluate {
    publishing {
        publications {
            maven(MavenPublication) {
                groupId mGroupId
                artifactId mArtifactId
                version mVersionName

                from components.release

                artifact androidSourcesJar

                pom {
                    name = mLibraryName
                    description = mLibraryDescription
                }
            }
        }
        repositories {}
    }
}

• In repositories, add details of your package. In this configuration, keep the name as “GitHubPackages” and URL should be in the format “https://maven.pkg.github.com/USER/REPO”. Here we’ll get credentials from environment variables. Here password will be a GitHub’s PERSONAL ACCESS TOKEN which should have a permission write:package.

        repositories {
            maven {
                name = "GitHubPackages"
                url = uri("https://maven.pkg.github.com/PatilShreyas/AndroidGPR")
                credentials {
                    username = System.getenv("GPR_USER")
                    password = System.getenv("GPR_KEY")
                }
            }
        }

• Thus, Gradle task — publish will be generated. But package artifact should be generated before publishing package. So we’ll define it as below 👇.

Thus whenever gradlew publish is executed then assembling will be performed first.

publish.dependsOn assemble

---

Setup Workflow

We’ll create a workflow which will be triggered whenever a git tag is pushed. So let’s create.

• Create a file release.yml in /.github/workflows directory. Initialize it as below.

name: Release
on:
  push:
    tags:
      - 'v*'

• Add basic setup for job as below 👇. Here Gradle caching is optional.

jobs:
  publish:
    name: Release Simple Library
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v1

      - name: Set up JDK 12
        uses: actions/setup-java@v1
        with:
          java-version: 12

      - name: Cache Gradle and wrapper
        uses: actions/cache@v2
        with:
          path: |
            ~/.gradle/caches
            ~/.gradle/wrapper
          key: ${{ runner.os }}-gradle-${{ hashFiles('**/*.gradle*') }}
          restore-keys: |
            ${{ runner.os }}-gradle-
      - name: Grant Permission for Gradlew to Execute
        run: chmod +x gradlew

• Now, let’s build .aar (Android Library artifact).

      - name: Build AAR ⚙️🛠
        run: bash ./gradlew :simplelibrary:assemble

• Now if the above build is successful then we can proceed to publish the package to GPR. Use secrets.GITHUB_TOKEN which is exposed by GitHub Actions CI already.

      - name: Publish to GitHub Package Registry 🚀
        run: bash ./gradlew :simplelibrary:publish
        env:
          GPR_USER: ${{ github.actor }}
          GPR_KEY: ${{ secrets.GITHUB_TOKEN }}

If you remember, we were reading username and password from System Environment variables in build.gradle configuration of the library. We’ll need to expose them from here.

• Now once the package is published to GPR we’re ready to create a GitHub release. (Here we are keeping draft as true so that we can release it later).

      - name: Create Release ✅
        id: create_release
        uses: actions/create-release@v1
        env:
          GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}
        with:
          tag_name: ${{ github.ref }}
          release_name: ${{ github.ref }}
          draft: true
          prerelease: false

• Once the GitHub release is created it will upload library artifact to the release.

      - name: Upload Simple Library AAR 🗳
        uses: actions/upload-release-asset@v1
        env:
          GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}
        with:
          upload_url: ${{ steps.create_release.outputs.upload_url }}
          asset_path: simplelibrary/build/outputs/aar/simplelibrary-release.aar
          asset_name: simple-library.aar
          asset_content_type: application/aar

Yeah, that’s it! 😃 Now let’s test it 🧪.

---

Test Workflow

Follow these steps for testing workflow:

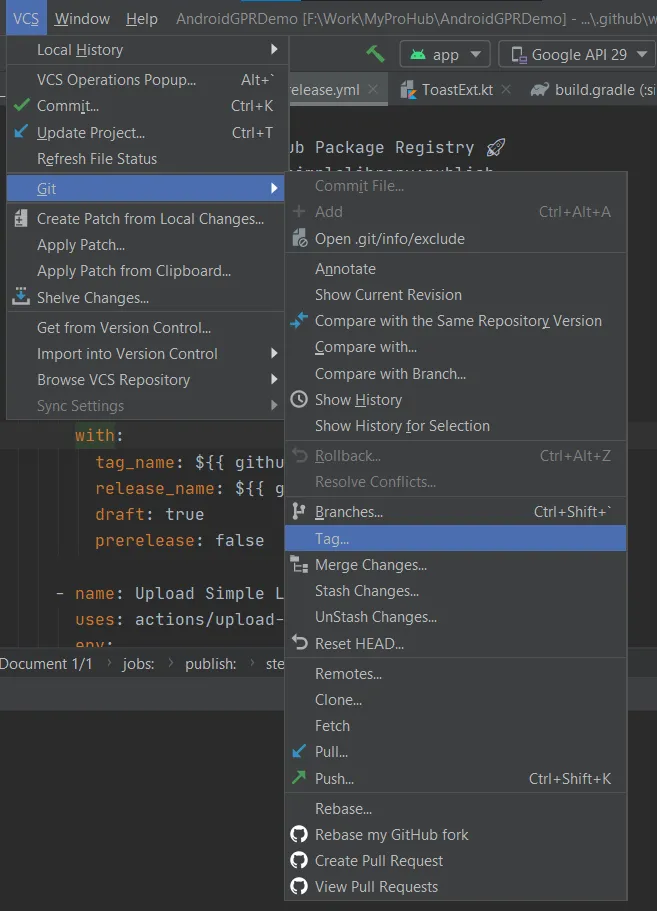

• Go to VCS → Git → Tag

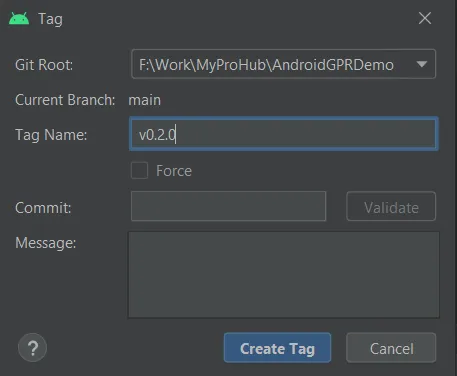

• Create a tag using valid version

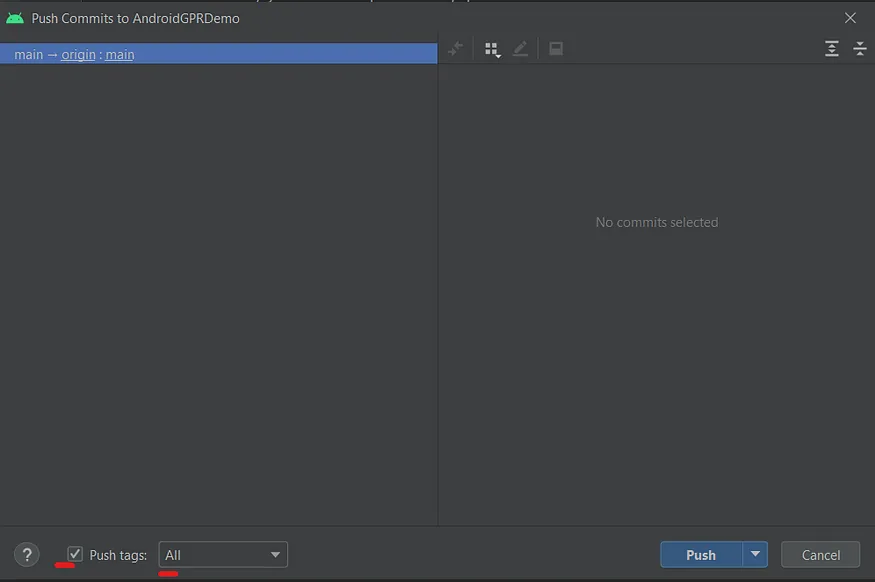

• Now push that newly created tag

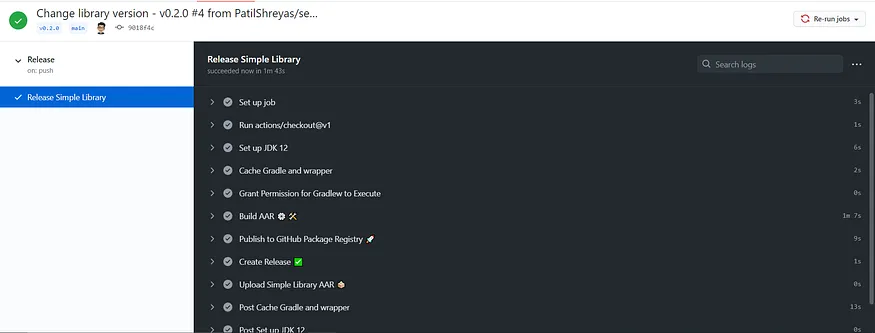

• Once it’s pushed navigate to your repository’s Actions tab.

Once you see success status of CI as seen in the above image means everything worked perfectly 😍.

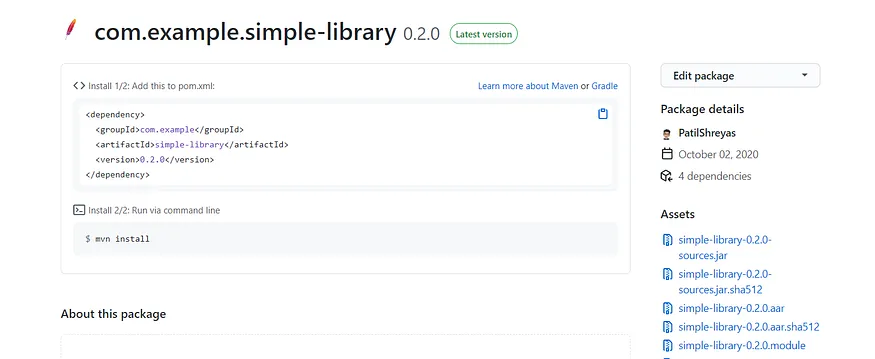

• Now navigate to the Packages section of repository and you’ll see package details there as 👇.

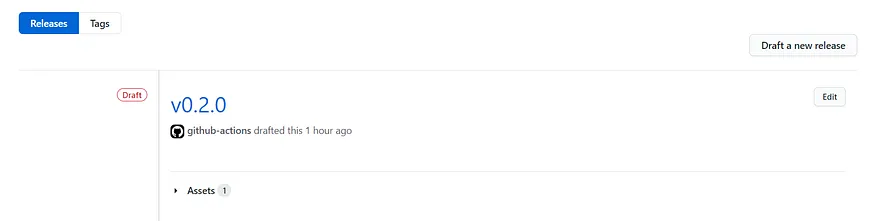

• Now let’s verify if GitHub release is created or not. Navigate to releases section of the repository and see.

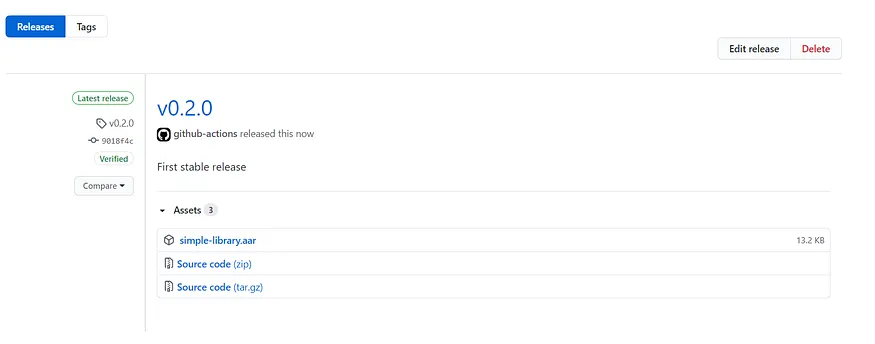

• As you can see draft release is created here. Now you can edit it, add a description of the release and then you can publish this release.

Yeah! Now anybody can use this package if they have an access token. But how to use it? 🤔 Let’s see.

---

Creating an Access token for reading package

As we discussed, we’ll need GitHub access token for consuming package. So let’s create an access token for it.

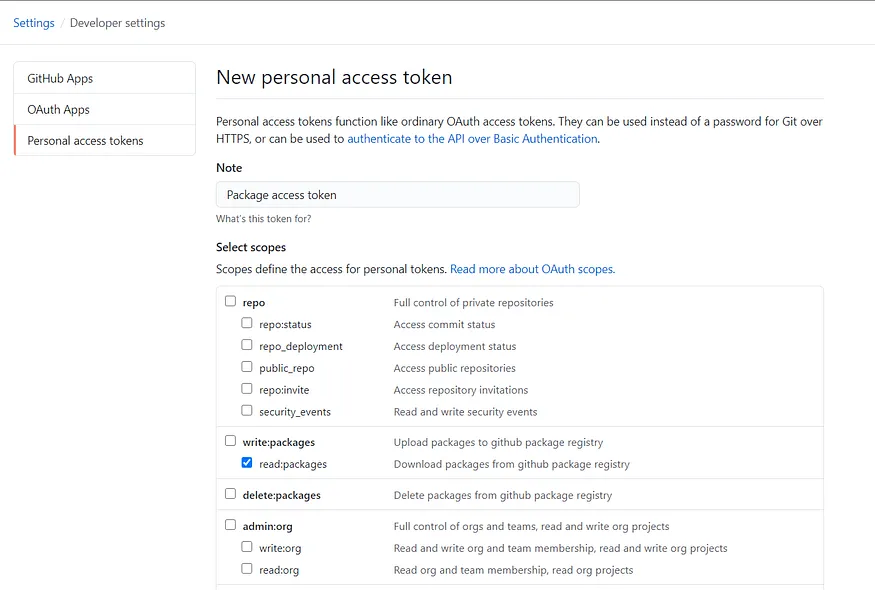

• Navigate to https://github.com/settings/tokens and then click Generate New Token.
• Make sure to check scope — read:packages

This means only the reading package is possible using this token. So it’s safe to give it to the consumer.

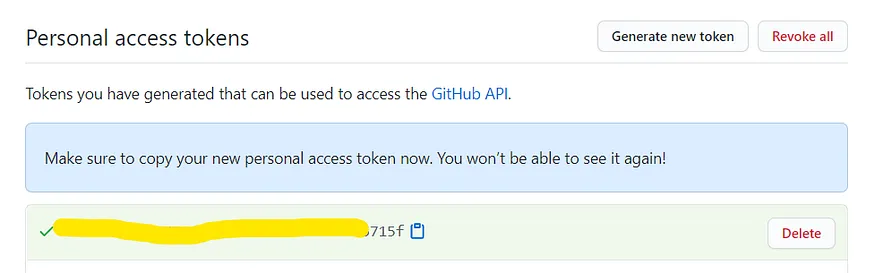

• Click ‘Generate Token’ and the token will be generated. Make sure you’ve noted token.

Now it’s time to use Android library in app.

---

Configuring Android app

Open Android app project from which the library will be used and perform the following steps.

• Just open build.gradle of the app module.
• Add repository for GitHub package.

In the credentials, keep your GitHub’s username as username and put the token which we created in the previous step as a password.

repositories {
    maven {
        name = "GitHubPackages"
        url = uri("https://maven.pkg.github.com/PatilShreyas/AndroidGPR")
        credentials {
            username = 'GITHUB_USERNAME_HERE'
            password = 'ACCESS_TOKEN_HERE'
        }
    }
}

• Finally, add a dependency of the Android library.

dependencies {
    // Simple library
    implementation 'com.example:simple-library:0.2.0'
}

Yeah, that’s it. Now just do Gradle sync and enjoy 🎉

Isn’t it easy 😃? This is how you can automate or DevOps-ify your Android library workflow so you will just write code, push it, chill and enjoy 😅.

I hope you liked this article and it’ll be helpful for everyone!

Thank you! 😄

References

• Example Repository
• GitHub Packages
