Hey Kotliners 👋🏻, there's no doubt that Kotlin coroutines have made developer's life easy for asynchronous programming. Coroutine comes with feature-packed powerful APIs by which developers don't need extra effort for achieving something. Just need to know which API to use where and that's all! When it comes to JVM, coroutines literally have improved the way of writing asynchronous code by reducing callback hells. But how exactly the coroutine achieves it under the hood is always an interesting thing. So here we are to know how delay API works inside the coroutines (inside JVM) 😁.
What is a delay() ?
Everyone who has used coroutines might have used delay() method already. This is what official docs say about delay():
"Delays coroutine for a given time without blocking a thread and resumes it after a specified time."
Example: Perform Task-2 two seconds after performing Task-1
scope.launch {
doTask1()
delay(2000)
doTask2()
}
But here are things to note about delay():
It does not block the thread that it's running on
Allows other coroutines to run (on the same thread)
When the delay has expired, the coroutine will be resumed and will continue executing
Interesting! 🧐
Many developers compare delay() with Thread.sleep() method of Java. But actually, there's no comparison at all since they both exist for different use cases. They might look the same but they're different. Let's compare...
What's Thread.sleep() 😴 ?
This is Java's standard multi-threading API that "causes the currently executing thread to sleep (temporarily cease execution) for the specified number of milliseconds"
If this is used in coroutines: It's a Blocking function means that the function blocks the thread that it is running on. This means that other coroutines cannot run until the blocking function has finished executing.
Now, to understand it in detail, let's compare sleep() and delay()
Comparing sleep() and delay()
Let's compare it with an example. Imagine we want to perform some tasks concurrently but only with a single thread. Just like in Android development, there's a Main-thread which is a single thread.

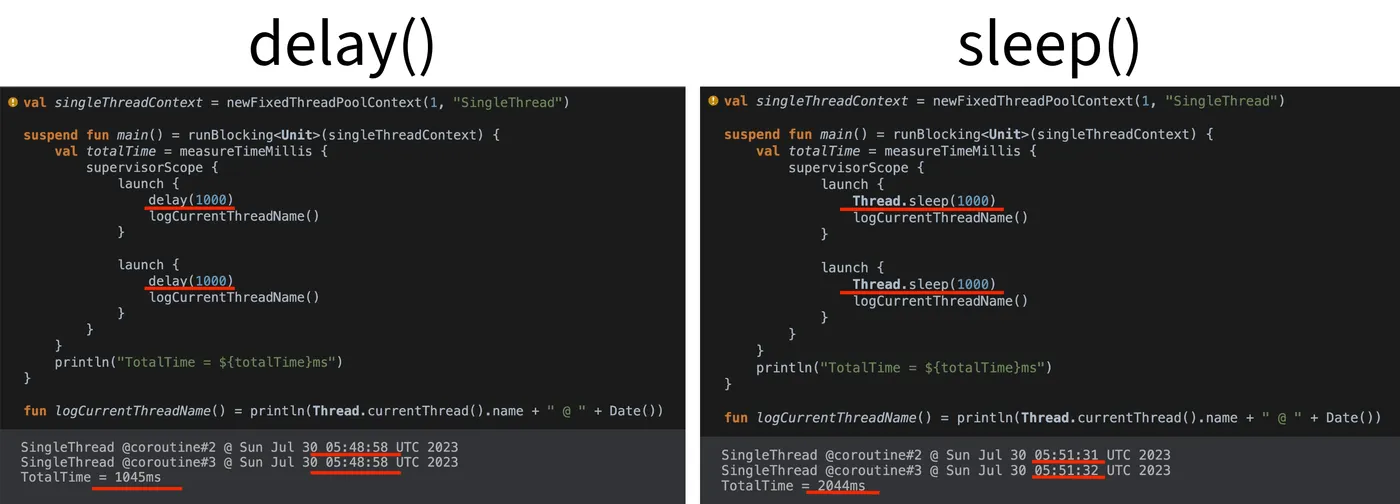

Take a look at the below snippets. In this, two coroutines are launched and a delay/sleep of 1000ms is applied.
Comparison:
When both coroutines were launched:
With
delay(), both coroutines were launched at same-second instant (05:48:58)With
sleep(), the Second coroutine was launched exactly after one second.
When both coroutines finished:
With
delay(), it took a total execution time of 1045mswith
sleep(), it took a total execution time of 2044ms
This brings us to conclude the same as we described initially that delay() just suspends the coroutine and allows the other coroutine to re-use the same thread whereas Thread.sleep() directly blocks the Thread for a specified duration.
Want to see a different superpower of a coroutine? Then just look at the snippet and case below:

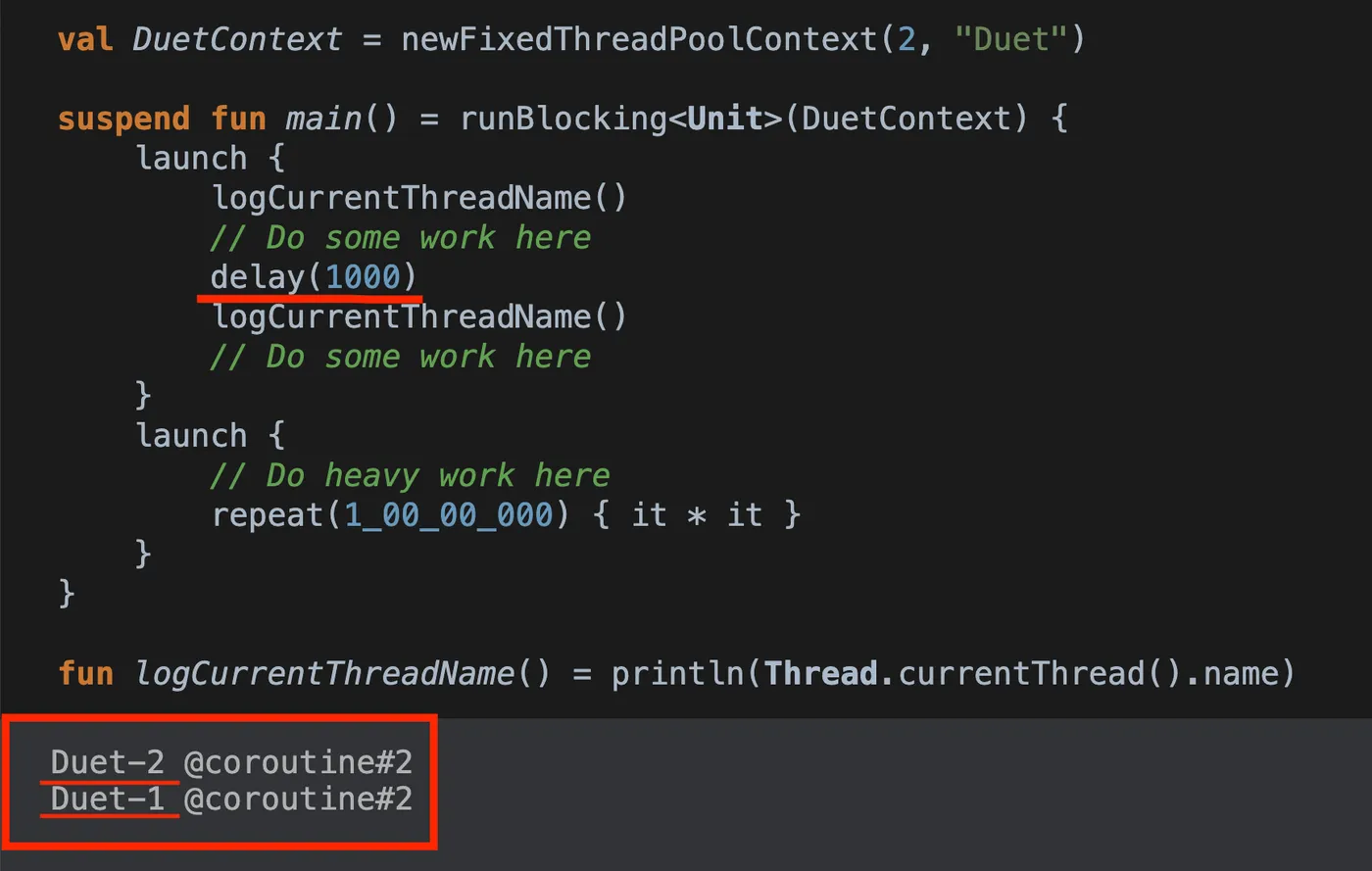

Case: There is a Thread pool context of a Maximum of 2 threads. The first coroutine is launched, it does some work there, and then it adds a delay() of one second and after that delay, it does some work. Concurrent with the first coroutine, a second coroutine is launched which performs heavy tasks in such a way that a Thread will be spending most of its time executing that task.
Amazing! Before a delay, it was running on a Thread Duet-1. After a delay, it resumed on another thread, Duet-2. Why so? Since the other thread was busy performing heavy work in another launched coroutine, so it resumed on a different thread after a delay.
Interesting 🧐 , isn't it? That's the thing when Coroutine's docs say...
"Coroutines can suspend on one thread and resume on another thread."
Since we now know the powers of delay(), now let's understand how it works under the hood.
Dissecting delay() under the hood 🕵🏻♀️
Whenever we call a delay() method, it finds for a Delay's an implementation in the current Coroutine context and returns that.
public suspend fun delay(timeMillis: Long) {
if (timeMillis <= 0) return // don't delay
return suspendCancellableCoroutine sc@ { cont: CancellableContinuation<Unit> ->
if (timeMillis < Long.MAX_VALUE) {
! cont.context.delay.scheduleResumeAfterDelay(timeMillis, cont)
}
}
}
Delay is an interface which has support for methods which schedules the execution of the coroutine after some delay. The methods delay(), withTimeout() are backed by the implementation of this interface.
public interface Delay {
/**
* Schedules resume of a specified [continuation] after a specified delay [timeMillis].
*/
public fun scheduleResumeAfterDelay(timeMillis: Long, continuation: CancellableContinuation<Unit>)
/**
* Schedules invocation of a specified [block] after a specified delay [timeMillis].
* The resulting [DisposableHandle] can be used to [dispose][DisposableHandle.dispose] of this invocation
* request if it is not needed anymore.
*/
public fun invokeOnTimeout(timeMillis: Long, block: Runnable, context: CoroutineContext): DisposableHandle =
DefaultDelay.invokeOnTimeout(timeMillis, block, context)
}
Then this interface is implemented by the coroutine executor dispatchers. It provides freedom for dispatchers to implement this functionality as they want. For example, real dispatchers like IO, Default supports delay. Test dispatchers (used in unit testing) can control the delay as needed.
CoroutineDispatcher is also an abstract class. Dispatchers make use of core threading APIs in the implementation dispatchers. For example, in JVM, Dispatchers like Dispatchers.Default, Dispatchers.IO use implementation of core java.util.concurrent APIs like Executor. In Android, Dispatchers.Main makes use of Handler APIs. So if dispatchers want to support delaying, they also implement the Delay interface. The method scheduleResumeAfterDelay() resumes a continuation of a coroutine after a specified delay of milliseconds.
This is how ExecutorCoroutineDispatcherImpl implements the method.
override fun scheduleResumeAfterDelay(timeMillis: Long, continuation: CancellableContinuation<Unit>) {
(executor as? ScheduledExecutorService)?.scheduleBlock(
ResumeUndispatchedRunnable(this, continuation),
continuation.context,
timeMillis
)
// Other implementation
}
Thus, it just schedules a resumption of continuation with the help of schedule() method of ScheduledExecutorService.
Let's also take a look at Android's implementation of a Dispatcher (HandlerDispatcher).
override fun scheduleResumeAfterDelay(timeMillis: Long, continuation: CancellableContinuation<Unit>) {
val block = Runnable {
with(continuation) { resumeUndispatched(Unit) }
}
handler.postDelayed(block, timeMillis.coerceAtMost(MAX_DELAY))
// Other implementation
}
Straightforward 😄. It just posts continuation runnable on the Handler with postDelayed() with delay. That's the reason calling a delay() doesn't block the thread.

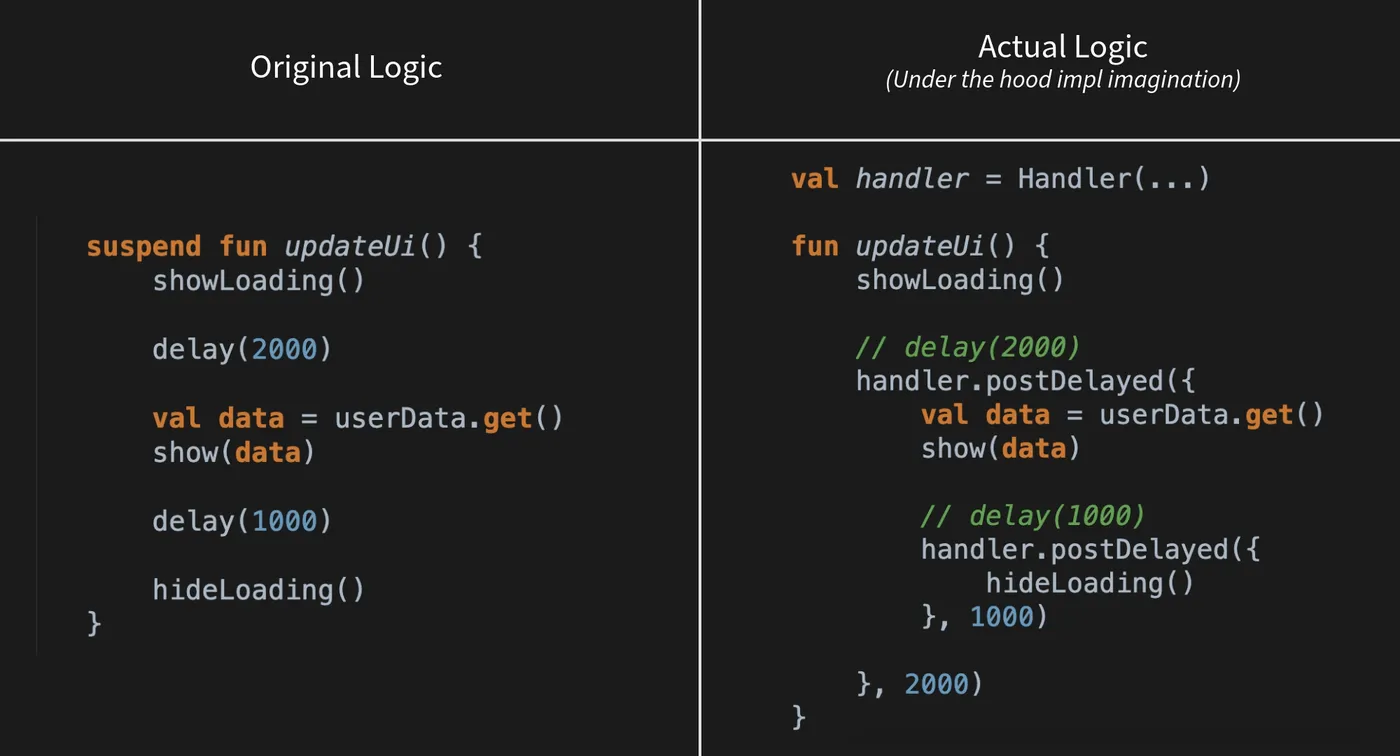

Example: So when you're writing delayed business logic in a single thread context (Android's Main thread in this example), this is how it's treated under the hood (just for imagination).
Interesting 🤨, isn't it? So whenever you call delay() in Android, it just creates a nested callback chain of Handler#postDelayed(). The same goes for JVM with Executor APIs. Whereas, if you write the same logic with Thread.sleep(), it blocks that thread till that duration. So, delay() and sleep() are two different things that are not similar.
Awesome 🤩. That's the beauty of coroutines. It just skips the writing of callback hell for developers and manages it well internally in such a way that we could synchronously write asynchronous code!
I hope you got the idea about how exactly delay() works in the coroutine 😃.
